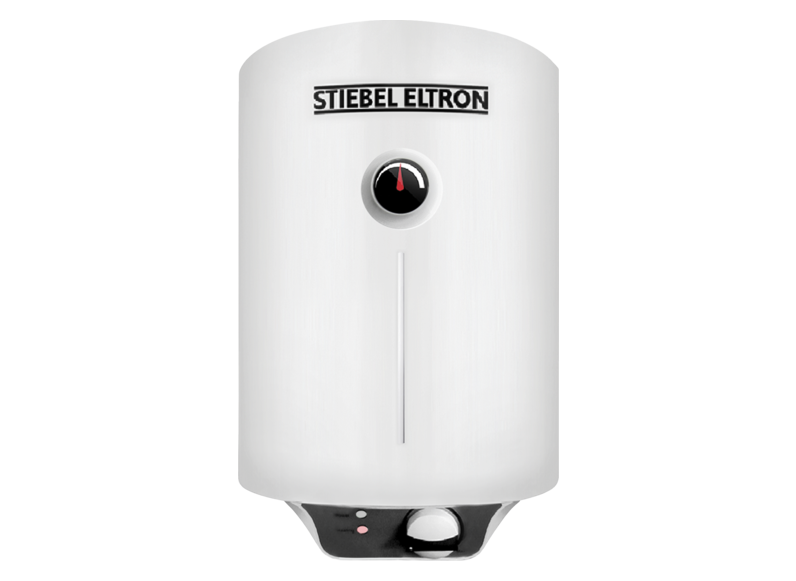

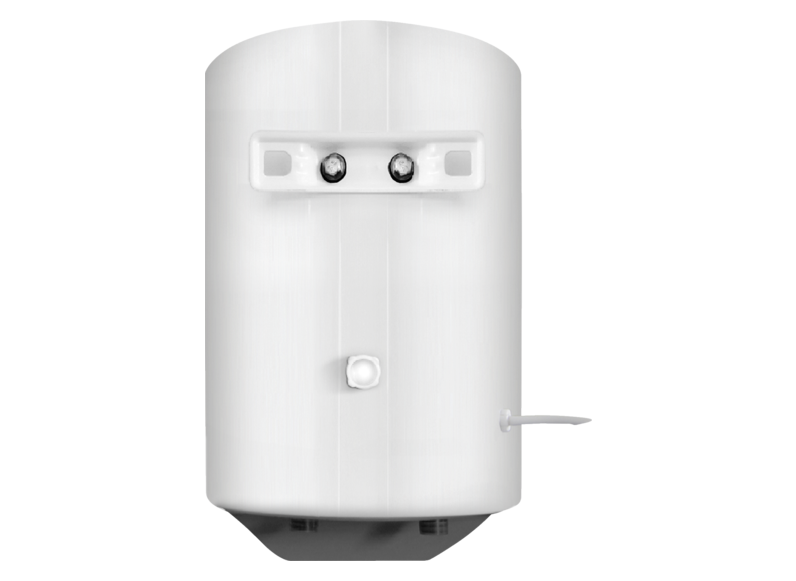

Wall mounted cylinder
EVS 50 (STE)

  • Product details

    Wall mounted storage water heaters from STIEBEL ELTRON are ideal for providing plentiful amounts of hot water in an instant, both in the bathroom and kitchen. We employ technology that is well known for its reliability and high level of safety. The special enamel coating and integral safety components we use enable us to guarantee a long service life for all of our storage water heaters. STIEBEL ELTRON has the right wall mounted storage water heater to suit every conceivable installation scenario, for a fast and flexible supply of hot water to one or more draw-off points.



    Technical datasheet

    Product Number: 235869

    Height: 745 mm

    Width: 390 mm

    Diameter: 390 mm

    Weight: 17.1 kg

    Safety valve: Pressure safety valve

    IP rating: IPX4

    Cylinder material: Steel, enamel

    Heating element material: Incoloy

    Temperature range: up to 75 °C

    Nominal capacity: 50 l

    Electrical connection: 1/N/PE~220-240 V

    Rated current: 9.5 A

    Rated output: 2,000 W
