Instantaneous water heater for showers
DS EC

  • DS 45 EC (STE)
    • Temperature adjustment via stepless power control
    • Elegant LED light band to indicate operation
    • Complete set optimised for a single shower
    • Corrosion-resistant copper heating element and tank

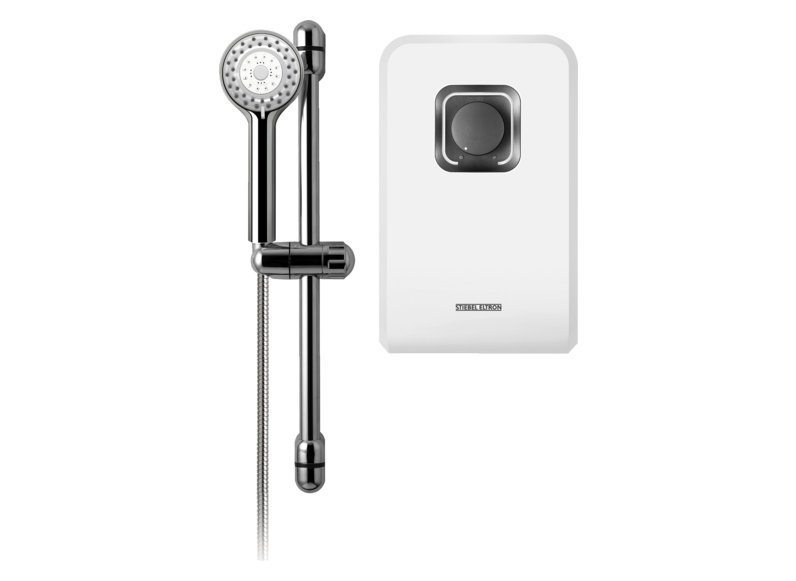

    • 5-in-1 shower head with slide bar for convenient height adjustment
    • Anti-scalding and overheating protection with double action thermostat
    • Protection from electric shock with Earth Leakage Circuit Breaker (ELCB)
    • Protection class IP25 (splash-proof)

    Select other variants

    Rated output

    3,500  W

    6,000  W

    6,000  W
    Questions about the product Get contact

    Product details

    With its elegant shower accessories and copper tank, this model offers a durable, low-maintenance solution for your home. Featuring an innovative LED light to indicate operation while you shower, the DS EC suits any bathroom design.

    DS EC has a power rating of 6000 watts to heat your water faster.


    Technical datasheet

    Product Number: 238180

    Electrical fuse protection: ELCB

    Rated output: 6,000 W

    Display: without

    Heating element: Copper tubular

    Type: Open outlet

    Automatic flow switch: true

    Heating material: Copper

    Temperature setting: Variable

    Temperature control: Output control

    Anti-scalding protection: Double acting thermostat

    Shower accessories: 5-in-1 shower head with slide bar

    Colour: white

    IP rating: IP25

    Depth: 85 mm

    Height: 350 mm

    Width: 212 mm

    Weight: 1.5 kg

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
