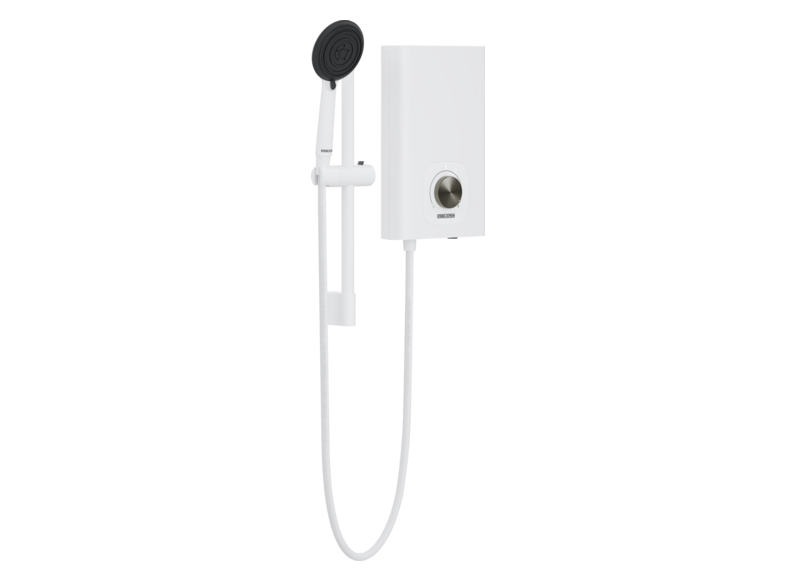

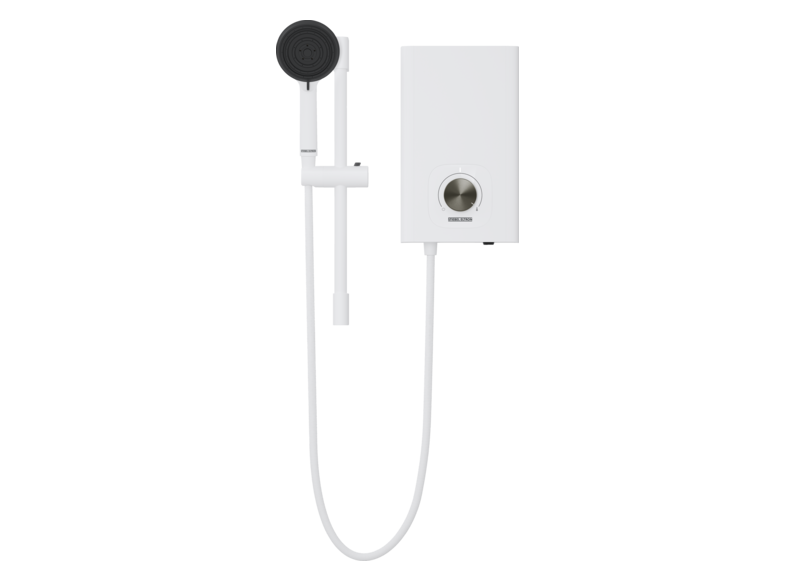

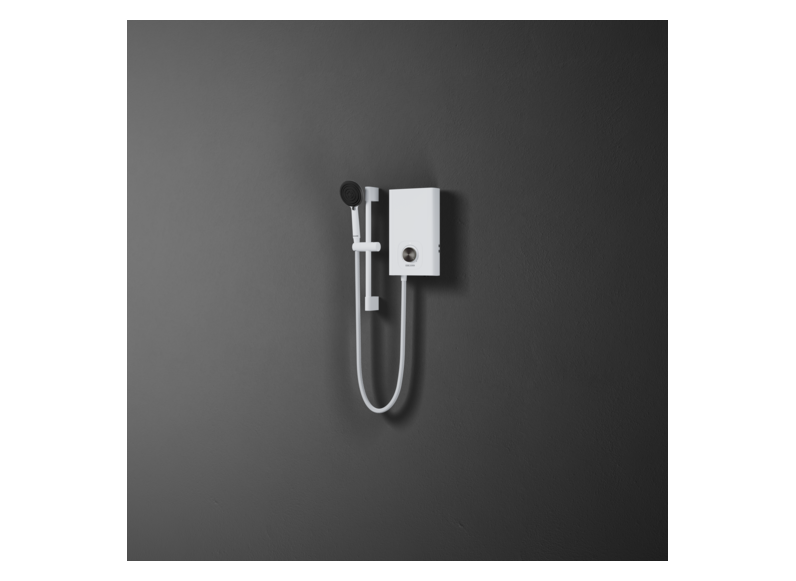

Instantaneous water heater for showers
AQX

  • AQX 45 (STE)
    • Temperature adjustment via stepless power control
    • Protection from electric shock with Earth Leakage Circuit Breaker (ELCB)
    • High-pressure copper tank with corrosion-free element
    • Safety indicator before every use ensures a worry-free shower experience
    • Shower set in classic white with standard slider
    • 5-in-1 shower head with slide bar for convenient height adjustment
    • Quick-clean shower faceplate with ring nozzles
    • Anti-scalding and overheating protection with double action thermostat

    Select other variants

    Rated output

    3,500  W

    4,500  W
    Questions about the product Get contact

    Product details

    Application • Electric instantaneous water heater with shower set – the complete solution for single showers. • Domestic hot water is provided instantly at the shower, without waiting.

    Comfort features • Shower unit featuring stepless adjustable power control up to the rated maximum power. • The shower head features 5 different spray settings ranging from gentle to massage and is mounted on a slide bar for convenient height adjustment.

    Installation • Quick and easy installation. • Drilling template provided.

    Efficiency • Highest energy efficiency rating – “Electricity Saving Label No. 5”

    Safety • Automatic Safety Check before each use for a worry-free shower experience. • Highest electrical safety certified to international standards guarantees trouble-free operation. • The Earth Leakage Circuit Breaker (ELCB) detects any harmful leakage current and shuts off the power supply, thereby providing full protection from electric shock. • Anti-scalding protection with integrated thermal cut-out to limit the water outlet temperature. • The flame-retardant electronic circuit board provides additional safety and durability. • The heating element is made from corrosion-resistant copper for superior durability and maintenance-free operation, even in chlorinated water. • Waterjet-proof IP 25.


    Technical datasheet

    Product Number: 207921

    Electrical fuse protection: ELCB

    Rated output: 4,500 W

    Electrical connection: 1/N/PE~220-230 V

    Rated voltage: 220 V

    Heating element: Copper tubular

    Type: Open outlet

    Automatic flow switch: true

    Heating material: Copper

    Temperature setting: Variable

    Temperature control: Output control

    Anti-scalding protection: Double acting thermostat

    Shower accessories: 5-in-1 shower head with slide bar

    Colour: white

    IP rating: IP25

    Depth: 92 mm

    Height: 345 mm

    Width: 206 mm

    Weight: 1.4 kg

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
