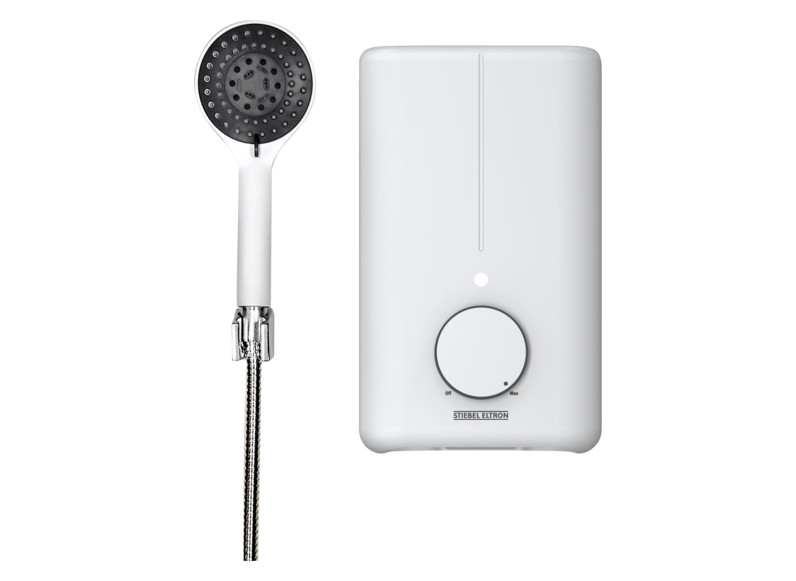

Instantaneous water heater for showers
DE 35 E (STE) – Technical Data

  • Technical data

    Heating element

    Copper tubular

    Type

    Open outlet

    Automatic flow switch

    true

    Heating material

    Plastic

    Temperature setting

    Step-less

    Temperature control

    Power control

    Anti-scalding protection

    Double action thermostat

    Shower accessories

    5-in-1 shower head with wall mounting bracket

    Colour

    white

    IP rating

    IP 25

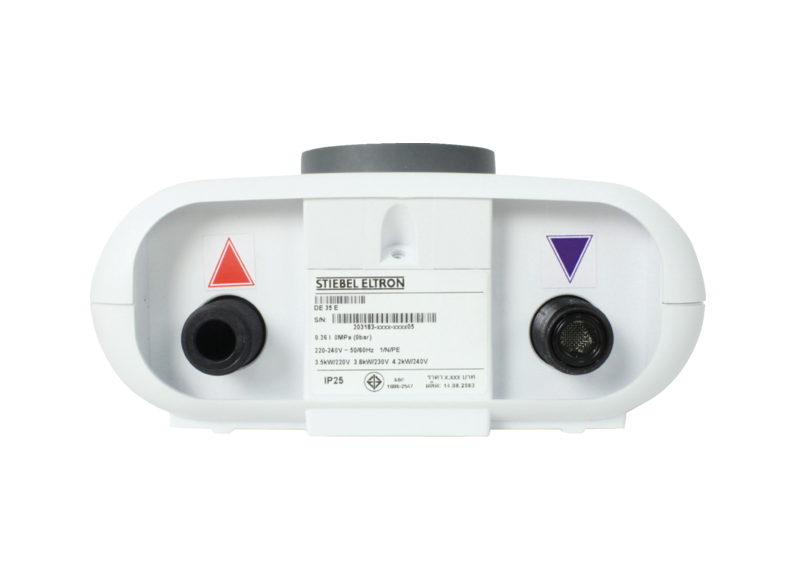

    Cold water connection

    1/2 inch

    Electrical fuse protection

    ELSD

    Rated output

    3,500 W

    Rated current

    15.9 A

    Display

    without

    Shutdown value

    0.8 l/min

    Starting flow rate

    1.3 l/min

    Depth

    78 mm

    Height

    308 mm

    Width

    184 mm

    Weight

    1 kg

    Technical data and product variants

    For further details and product variants please refer to data sheet.

    Download as PDF
