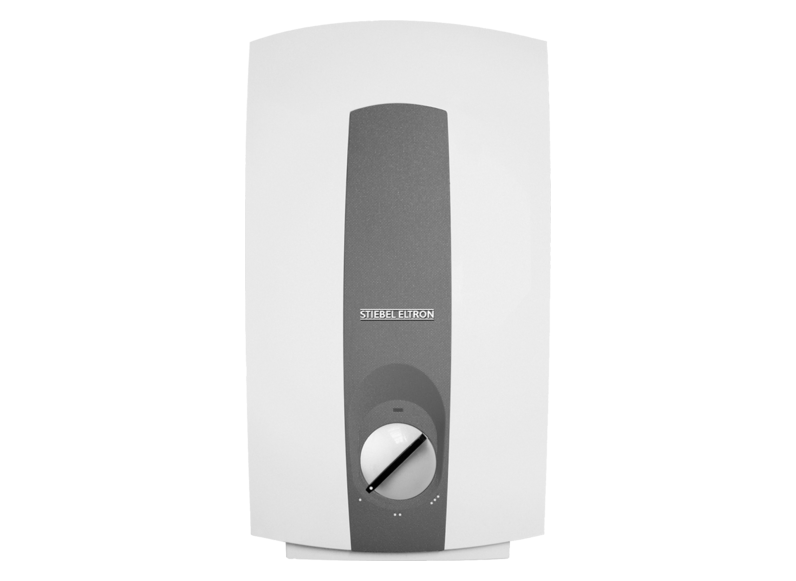

Compact instantaneous water heater
DHD 6 EC (STE) – Technical Data

  • Technical data

    Heating element

    Copper tubular

    Type

    Closed outlet

    Automatic flow switch

    true

    Cylinder type

    Copper

    Temperature setting

    3-step 40/50/60°C

    Temperature control

    Power control

    Anti-scalding protection

    Thermostat with manual reset

    IP rating

    IP 25

    Colour

    white

    Electrical fuse protection

    ELCB

    Rated output

    6.0 kW

    Rated current

    27.3 A

    Water connection

    1/2 inch

    Shutdown value

    2.1 l/min

    Starting flow rate

    2.5 l/min

    Depth

    110 mm

    Height

    360 mm

    Width

    200 mm

    Weight

    2 kg

    Technical data and product variants

    For further details and product variants please refer to data sheet.
