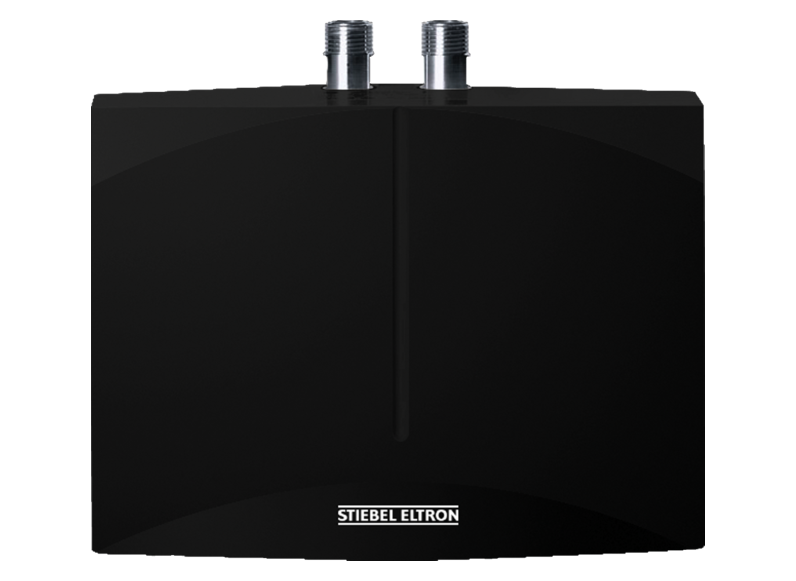

Compact instantaneous water heater

  • Product details

    APPLICATION: Mini electric instantaneous water heater for single or multiple draw-off points. Ideal for energy efficient and water-saving supply to a single hand washbasin. Pressure-tested appliance suitable for high and low pressure taps. Unvented appliance that does not require a drain valve or drain hose/drip pan. The maintenance-free heating element is also suitable for hard water with a higher calcium content.

    EQUIPMENT & CONVENIENCE: Mini instantaneous water heater with precise electronic temperature control ensures shower comfort thanks to a perfectly stable water temperature, even if someone uses the basin next to the shower.

    INSTALLATION: Extremely compact design suitable for undersink installation where space is very limited. Unit can be turned 180° to allow for oversink installation where required. Small dimensions enable flexible installation even in the tightest of spaces. Single-phase power supply. Quick and easy installation. Drilling template provided. Splash-proof.

    SAFETY & QUALITY: Highest electrical safety certified to international standards guarantees trouble-free operation. Integrated pressure safety switch to prevent overpressure.

    Technical datasheet

    Product Number: 203769

    Height: 143 mm

    Width: 190 mm

    Depth: 82 mm

    Weight: 1.6 kg

    Rated output: 6.0 kW

    Type: Closed outlet

    Automatic flow switch: true

    Cylinder type: Plastic

    Temperature setting: Variable 30-55 °C

    Temperature control: Electronic temperature control

    IP rating: IP25
