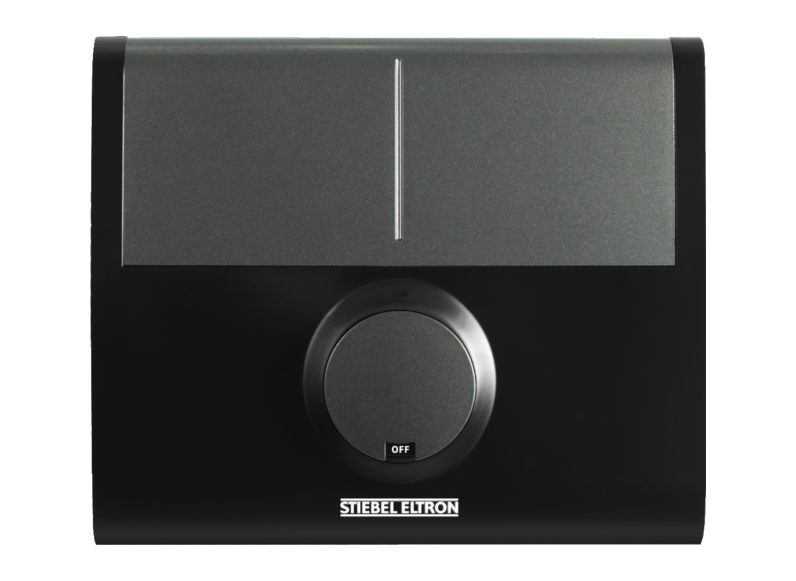

Compact instantaneous water heater
DDC 8 EC (STE) – Technical Data

  • Technical data

    Heating element

    Copper tubular

    Type

    Closed outlet

    Automatic flow switch

    true

    Heating material

    Copper

    Temperature setting

    3-step 40/50/55°C

    Temperature control

    Electronic temperature control

    Anti-scalding protection

    Thermostat with manual reset

    Colour

    black

    IP rating

    IP 25

    Cold water connection

    1/2 inch

    Electrical fuse protection

    ELCB

    Rated output

    8,000 W

    Rated current

    36.4 A

    Display

    Standard

    Shutdown value

    1.4 l/min

    Starting flow rate

    1.8 l/min

    Depth

    115 mm

    Height

    195 mm

    Width

    236 mm

    Weight

    2.2 kg

    Technical data and product variants

    For further details and product variants please refer to data sheet.
